CPU08

Titan DAQ Expander

128 Channel Expander

Front View

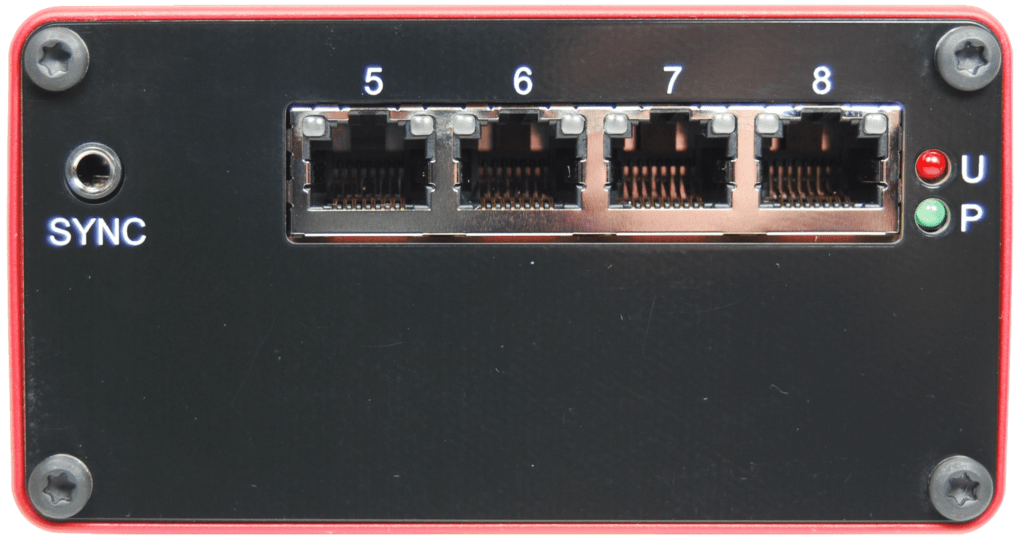

Rear View

KEY FEATURES:

  • Supports up to eight Titan Input Modules
  • Titan RJ45 COMM link provides power, communication, and synchronization via standard CAT6 Ethernet cable
  • Records directly to internal memory (32GB) or to a host PC
  • Network interface allows remote operationvia TCP/IP
  • Compact size and low weight make then CPU08 suitable for in-vehicle applications
  • Cabled Remote Control permits remote start/stop recording
Specifications

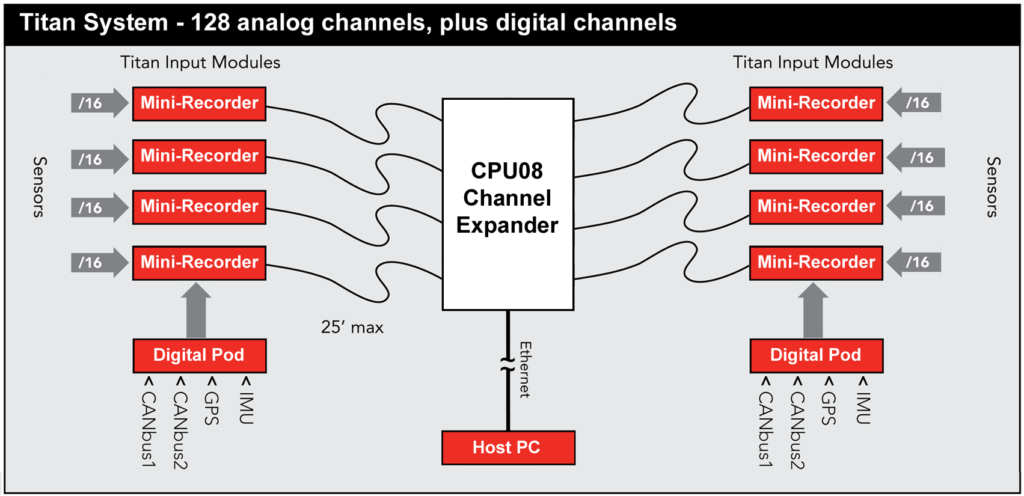

Number of Modules Supported Up to eight 16-channel Titan Input Modules
128 analog channels total, plus digital channels
(4 RJ45 ports in front, 4 RJ45 ports rear)
Sample Rate Up to 8192 samples/second (8 modules – 16 channels/module)
10K samples/second (8 modules – 13 channels/module max)
Recording Media 32GB Secure Digital (SD) memory card (non-removable)
PC OperationVia network or Ethernet crossover cable
Power Requirements 11 – 32 VDC @ 4W for the CPU, 4W typical for each additional Titan Input Module
Dimensions 13.3 cm x 10.6 cm x 5.6 cm (L x W x H)
