CPU04

Titan DAQ Expander

64 Channel Expander

Front View
Rear View

KEY FEATURES:

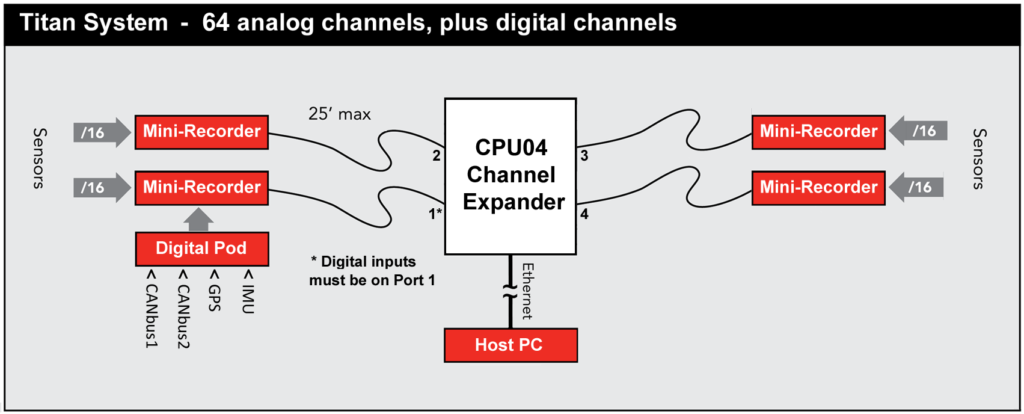

  • Allows up to 4 Titan Input Modules to be connected for test configurations up to 64 analog channels, plus digital channels
  • Titan RJ-45 COMM link combines power, RS422 communication, and synchronization via standard CAT6 Ethernet cable
  • Network interface permits remote operation via TCP/IP
  • Records directly to a 32GB internal SD card or to a remote PC

Special Offer
Buy 2 Titan Input Modules and get this 4-Port Channel Expander for Free. ($3,000 Value). Contact us to ask a questions or request a quote.

Applications:
  • Durability & Fatigue
  • Vehicle Dynamics
  • Acoustics
  • Noise & Vibration Analysis
  • Ride Quality Assessment
  • Shock
Specifications
Number of Modules Supported Up to four 16-channel Titan Input Modules
64 analog channels total, plus digital channels
(4 RJ45 port in rear)
Sample Rate Up to 10K samples/second
Recording Media 32GB Secure Digital (SD) memory card (non-removable)
PC OperationVia network or Ethernet crossover cable
Power Requirements 11 – 32 VDC @ 4W for the CPU, 4W typical for each additional Titan Input Module
Dimensions 17.6 cm x 10.6 cm x 3.7 cm (L x W x H) / Weight 540g
