System Overview

Titan CPU Channel Expanders allow you to connect multiple Titan Input Modules to easily configure large channel-count test systems of up to 192 channels, plus digital channels. Connections between the Expander and Input Modules are made using industry-standard CAT6 Ethernet cables, which provide communication, power, and synchronization on a single cable, simplifying wiring and eliminating the need for extra equipment. Data can be recorded directly to Expander internal memory or to a host PC, and network operation is possible via TCP/IP or UDP.

4 Port (64 Channel Expander)

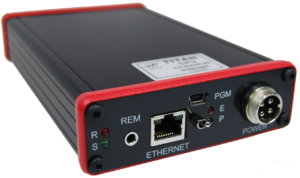

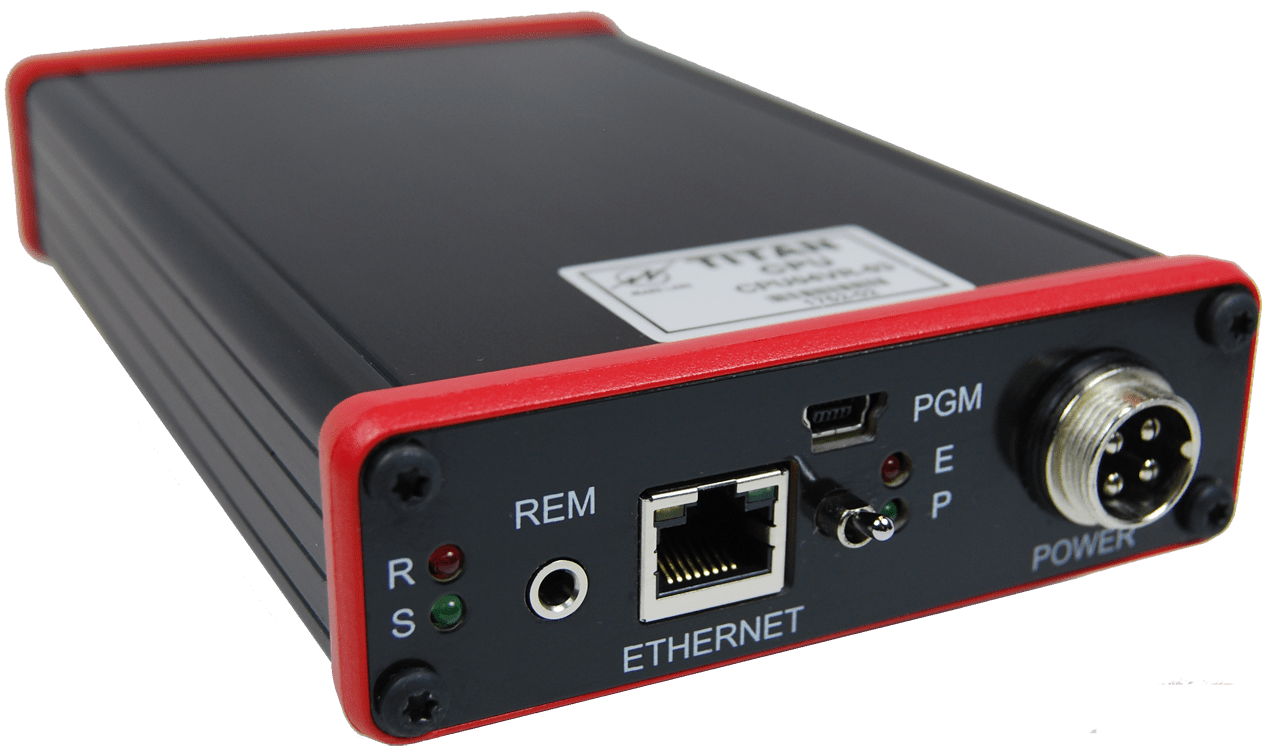

Front View

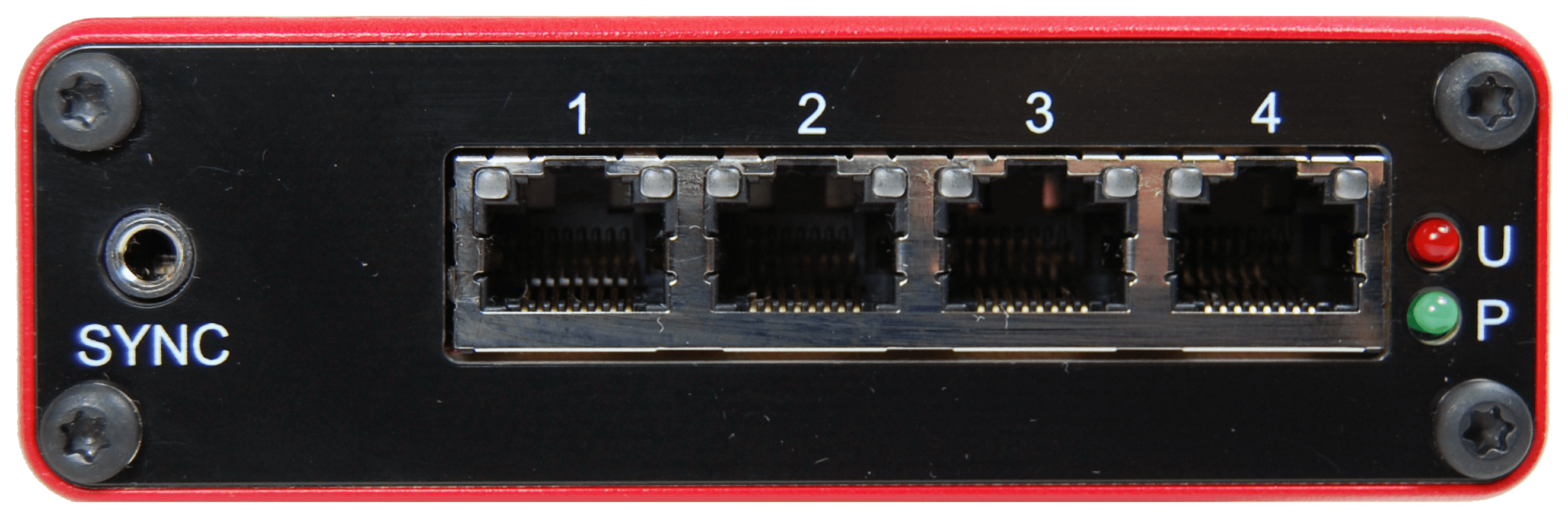

Rear View
  • Allows up to 4 Titan Input Modules to be connected for test configurations up to 64 analog channels, plus digital channels
  • Titan RJ-45 COMM link combines power, RS422 communication, and synchronization via standard CAT6 Ethernet cable
  • Network interface permits remote operation via TCP/IP
  • Records directly to a 32GB internal SD card or to a remote PC

Special Offer
Buy 2 Titan Input Modules and get this 4-Port Channel Expander for Free. ($3,000 Value). Ask questions or request a quote below.

8 Port (128 Channel Expander)

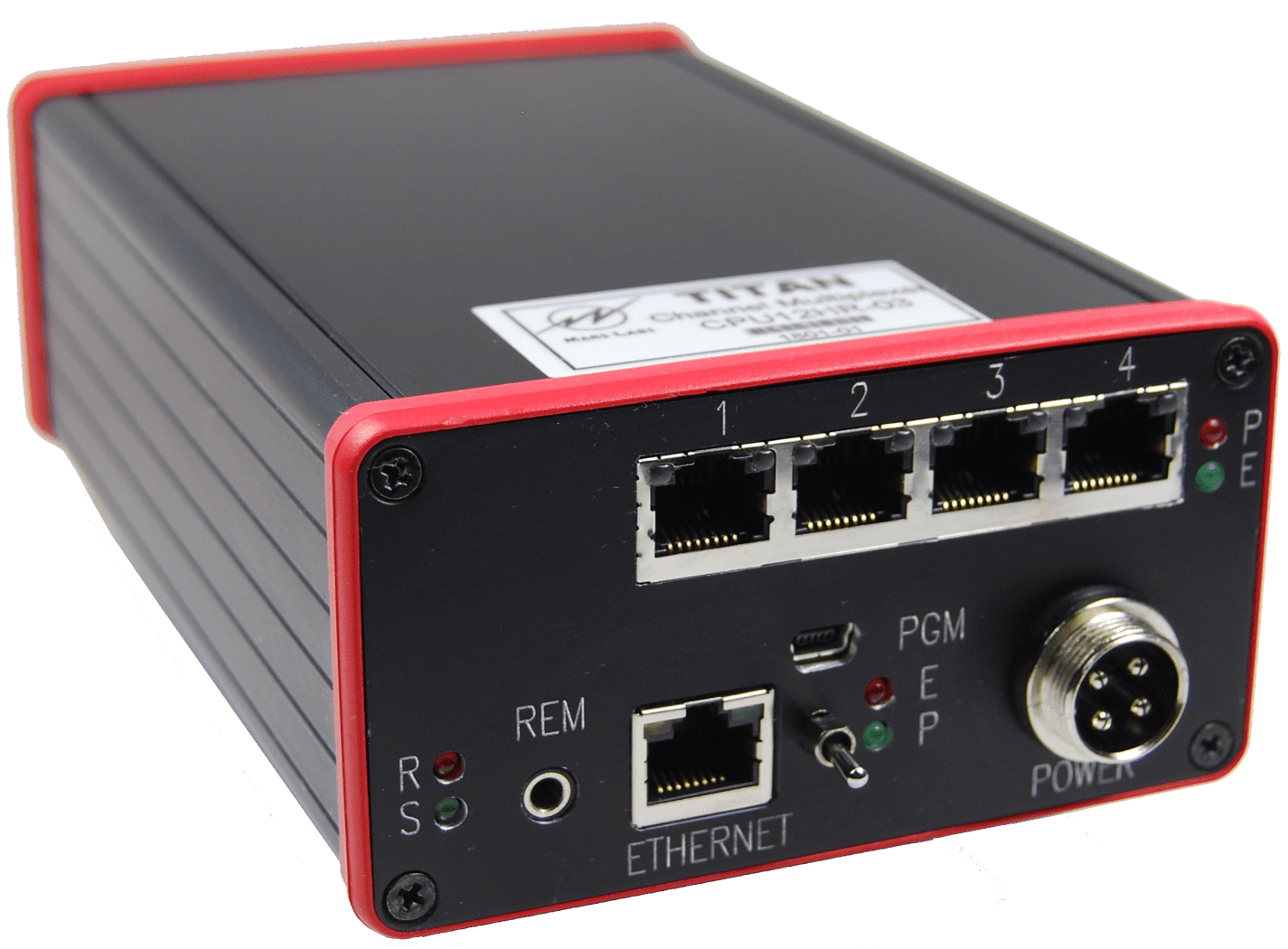

CPU08 or CPU12 Front

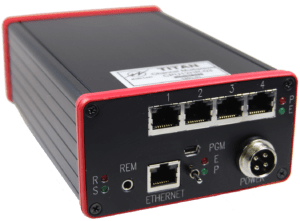

Front View

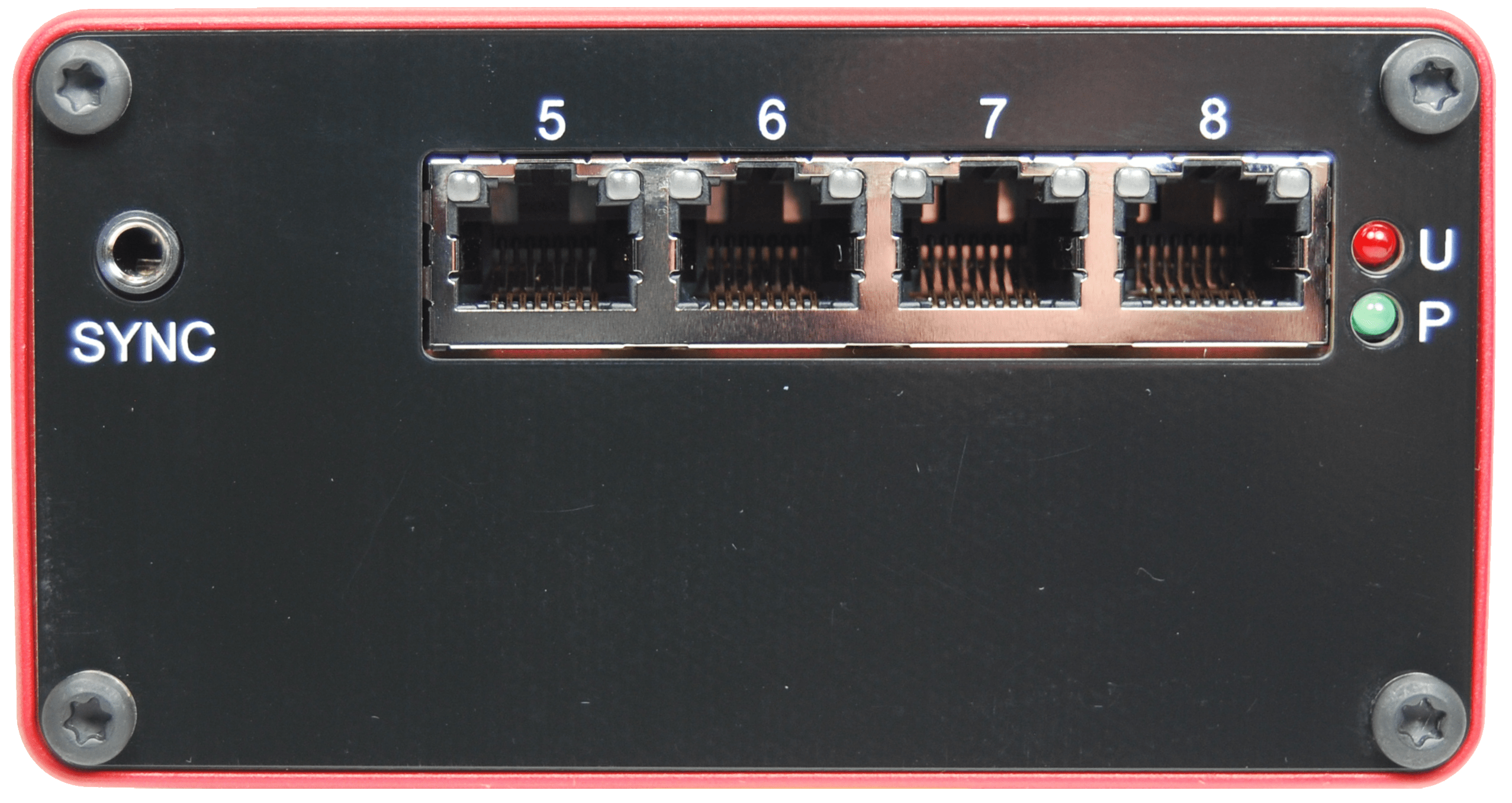

Rear View
  • Allows up to 8 Titan Input Modules to be connected for test configurations up to 128 analog channels, plus digital channels
  • Titan RJ-45 COMM link combines power, RS422 communication, and synchronization via standard CAT6 Ethernet cable
  • Network interface permits remote operation via TCP/IP
  • Records directly to a 32GB internal SD card or to a remote PC

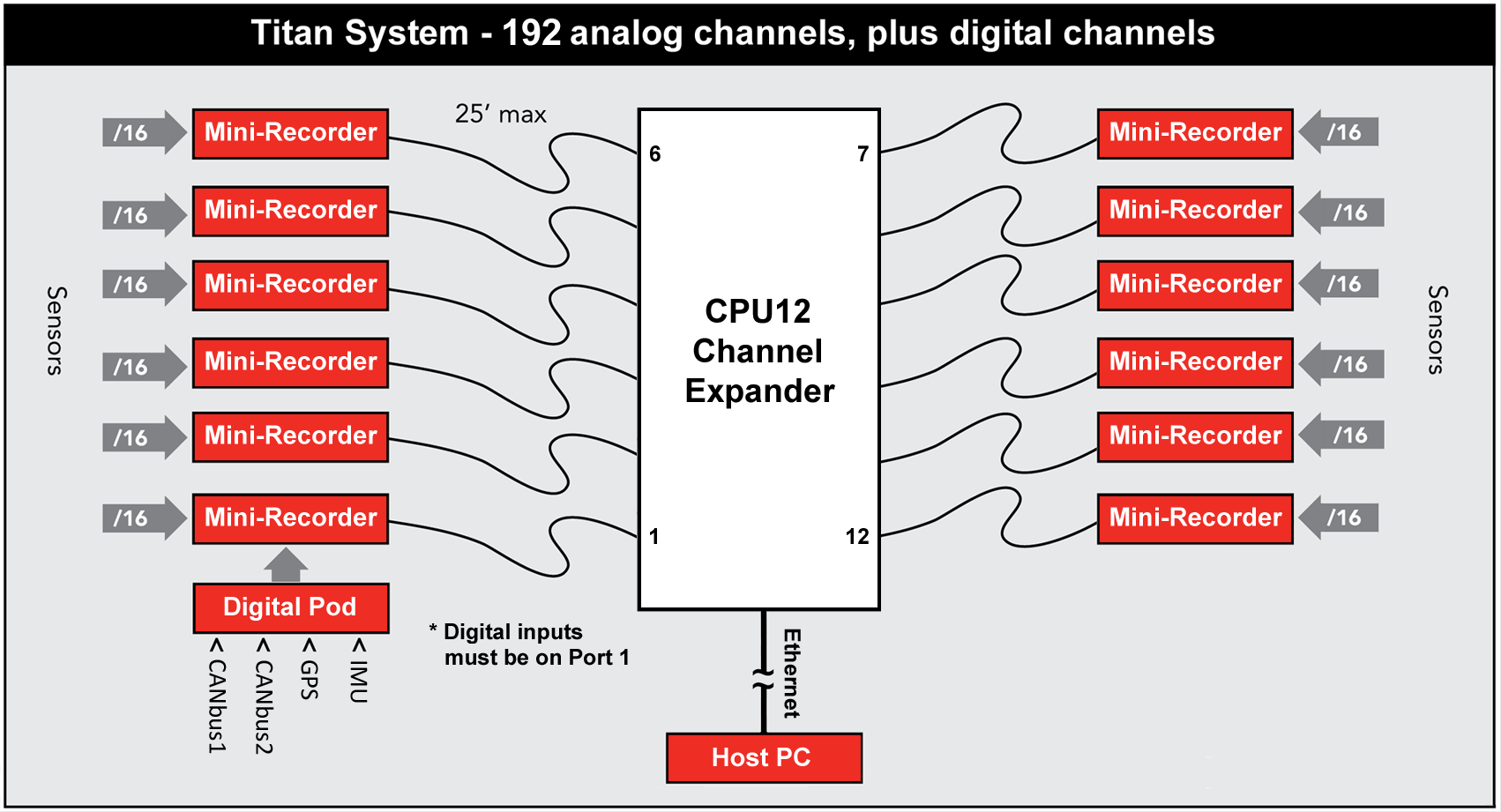

12 Port (192 Channel Expander)
CPU08 or CPU12 Front
Front View

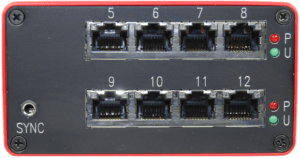

Rear View
  • Allows up to 12 Titan Input Modules to be connected for test configurations up to 192 analog channels, plus digital channels
  • Titan RJ-45 COMM link combines power, RS422 communication, and synchronization via standard CAT6 Ethernet cable
  • Network interface permits remote operation via TCP/IP
  • Records directly to a 32GB internal SD card or to a remote PC
Ask a Question or Request a Quote
