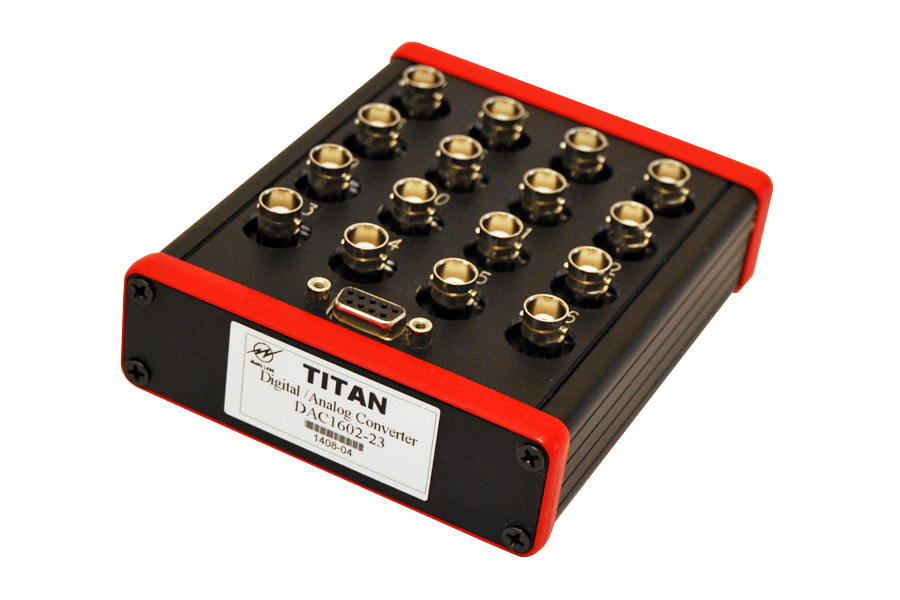

Titan Digital Analog Converter
16 Channel Analog Output
Key Features:
- Seamless integration with individual Titan Input Modules as well as Titan CPU-based systems
- Permits separation of input and output modules by providing a digital link for analog signals over distance (up to 300 ft) via standard
- Ethernet CAT 5/6 cable
- Supplies power to Titan Input Modules, eliminating the need for additional power sources
- Signals may be recorded when connected to a PC, Titan CPU or Titan Mini-Recorder, as well as monitored in real-time on the PC
- Simplified user interface provides easy operation under difficult operating conditions
Applications:
• Sixteen channel analog output for monitoring and control applications
• Closes outer loop on simulator system
Specifications:
| Number of Channels | 16 on BNC connectors |
| Output Sample Rate | 1200 samples/second |
| Output Bandwidth | 150 Hz |
| Sensor Balance Values | Output is automatically offset to include the balance value used for the sensor |
| Output Voltage Option | 0 to +5V, or ±10V |
| Output Filter Option | 150 Hz, 3 Pole reconstruction fi lter |
| Output Filter Option | Full Bridge resistive type – strain gauges, load cells, accelerometers, etc. Voltage Input — up to ±32 Volts Tachometer / Totalizer (frequencies up to 7KHz) Thermocouples J, K, & T |
| Digital Interface | (2) RJ-45 connectors (COMM Pod, COMM CPU), USB |
| Power Requirements | 11-32 VDC @ 1.4W; 5W typical when powering a Titan Input Module |
| Dimensions / Weight | 13.5 cm x 10.6 cm x 4.0 cm (L x W x H) / Weight 475g |
