Input / Output Modules

Input Modules

Titan Data Acquisition (DAQ) Systems offer universal signal conditioning, low power consumption, convenient SD card storage, and easy-to-use software.

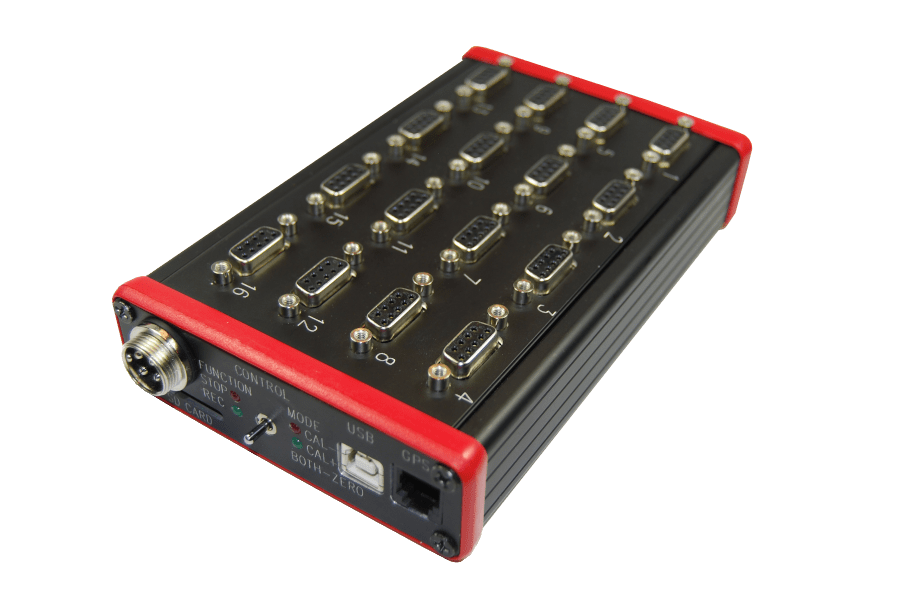

BMS

Analog / Digital

  • Supports multiple sensor types via 16 DB9 connector inputs
  • Support for resistive bridge sensors (strain gauge, load cells, accelerometer, etc.), voltage, thermocouple (J/K/T), tachometer/totalizer, and ICP sensors
  • Integrated quarter and half-bridge completion
  • Per-channel selectable excitation
  • Convenient panel controls for recording and calibration operations
  • Optional digital support for CANbus, IMU, and GPS

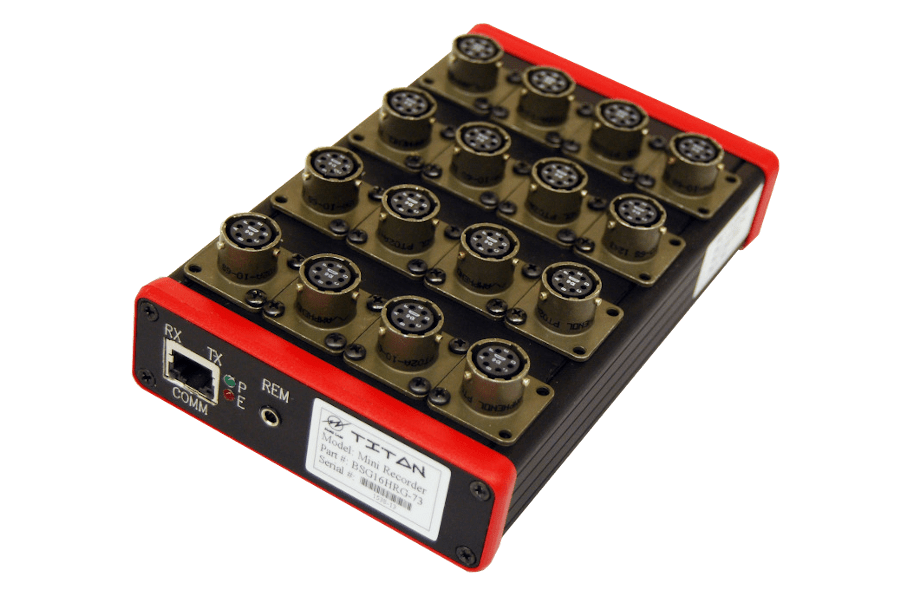

BSG

Analog / Digital

  • Supports multiple sensor types via 16 Bendix connector inputs
  • Support for resistive bridge sensors (strain gauge, load cells, accelerometer, etc.), voltage sensors, thermocouple (J/K/T), and tachometers/totalizers
  • Integrated quarter and half-bridge completion
  • Per-channel selectable excitation
  • Convenient panel controls for recording and calibration operations
  • Optional digital support for CANbus, IMU, and GPS

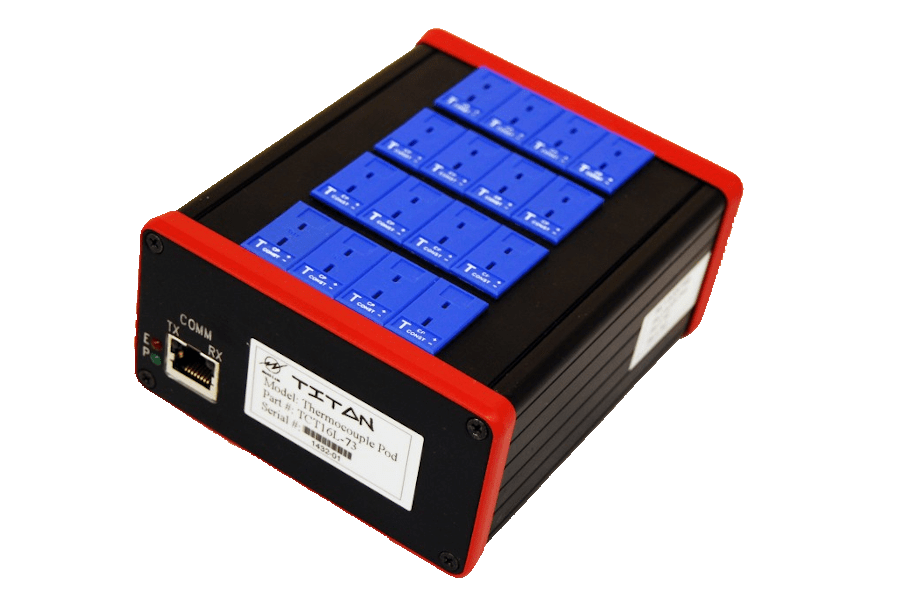

TCx

Thermocouple

  • Supports J, K, & T-type thermocouples via 16 mini-TC jacks
  • Convenient panel controls for recording and calibration operations
  • Optional GPS support

CAI

ICP DAQ

  • Dedicated ICP support (2.5mA)
  • Up to 60K Hz scan rate
  • Convenient panel controls for recording and calibration operations
  • Available with 16 top-mounted BNC inputs or twin rear-mount DB9 inputs

ADF

Analog

  • Small footprint multi-sensor recorder
  • Supports multiple sensor types via rear-mount DB37 connector input
  • Support for full bridge resistive sensors (strain gauge, load cell, accelerometers, etc.), voltage, tachometer/totalizer and thermocouples (J/K/T)
  • Provides fixed 2.048V excitation
  • Convenient panel controls for recording and calibration operations

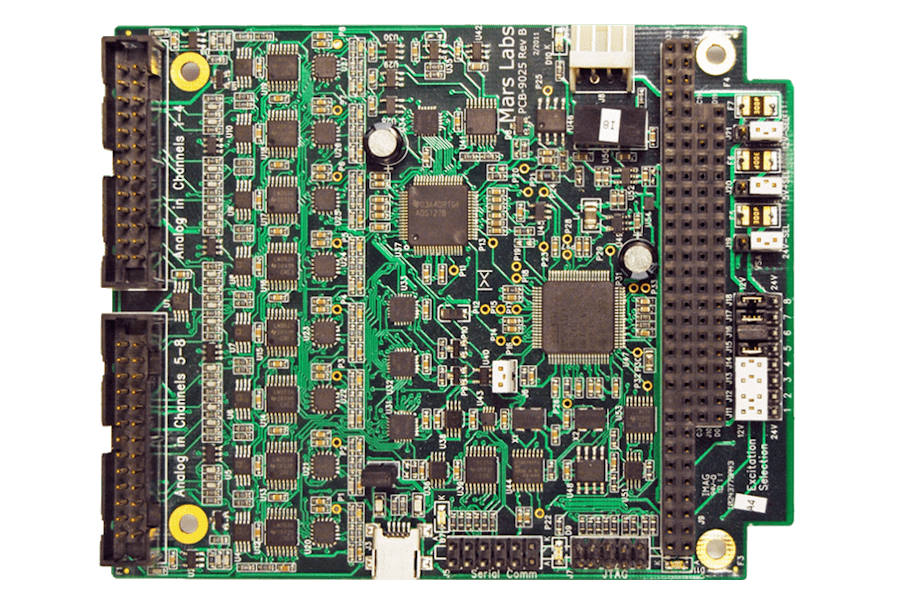

Custom

Hardware & Software

Mars Labs works closely with customers to design solutions tailored to our customers missions.

Output Modules

Titan Data Acquisition (DAQ) Systems offer universal signal conditioning, low power consumption, convenient SD card storage, and easy-to-use software.

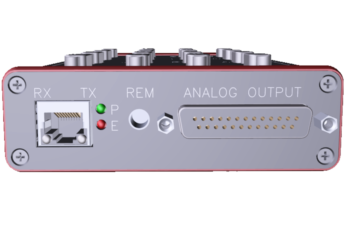

DAC

16 channel Digital to Analog (DAC) output module.
