CMX04

Titan CMX Expander

256 Channel Expander

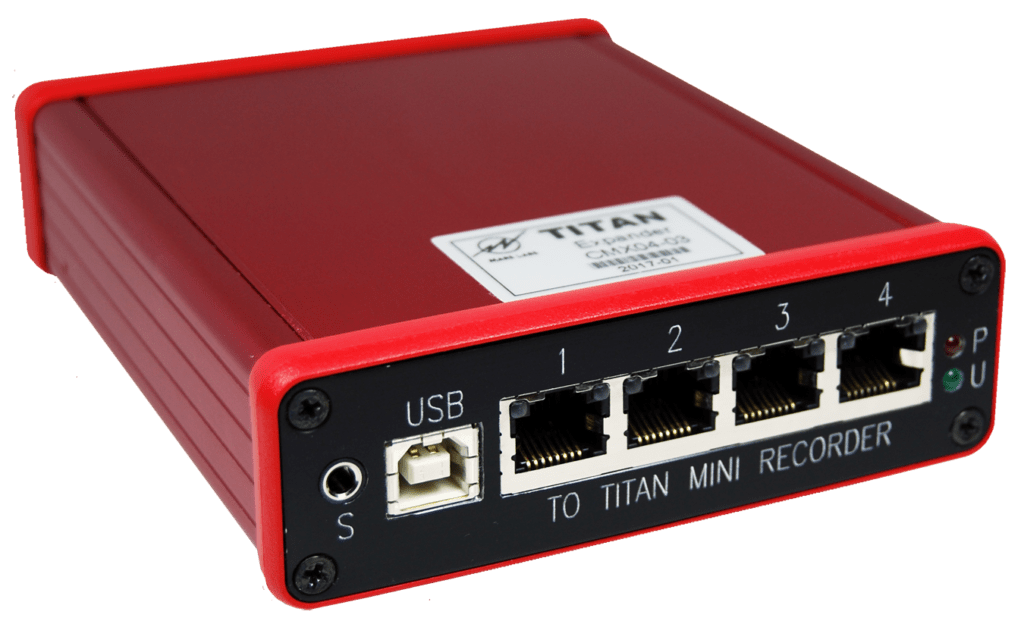

Front View

KEY FEATURES:

  • Expands the channel count of the Titan CML04 USB Channel Expander by providing four additional RJ45 COMM link connections for Titan Input Modules (provides up to an additional 64 channels)

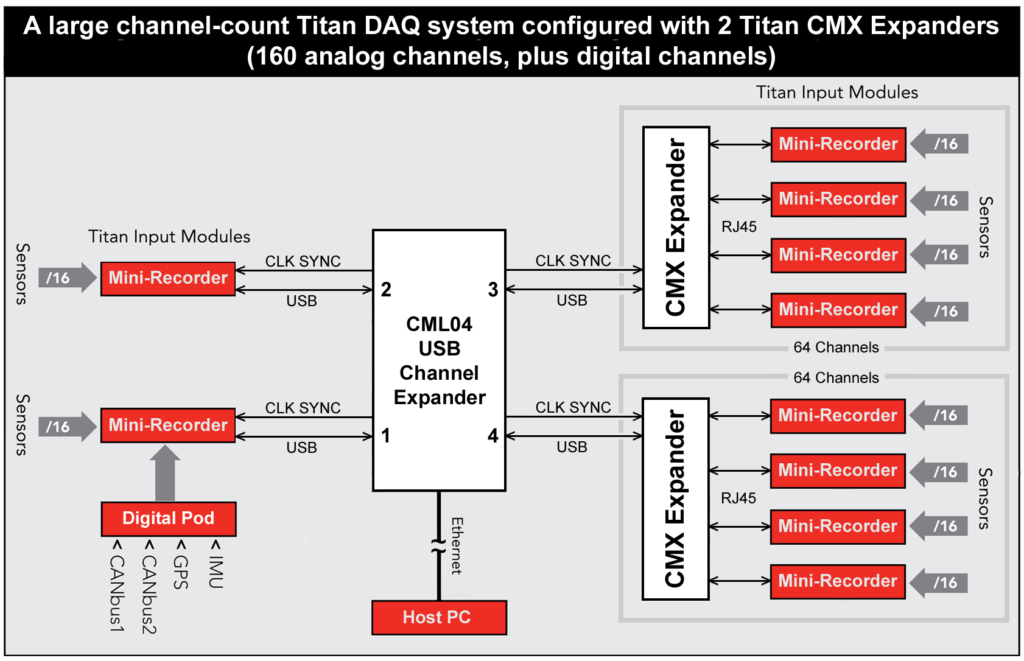

  • Multiple Expanders can be used to configure large channel-count systems (see figure below)
  • Provides power, communication, and sync on all RJ45 connections
  • Compact size and low weight make CMX04 suitable for in-vehicle applications
Specifications
Sample Rates With Titan ‘C’ series modules: Up to 25K samples/second
With Titan ‘B’ series modules: Up to 10K samples/second
* Mixed system configurations (Titan series B + C modules) are not supported
Power Requirements 11 – 32 VDC
Dimensions 13.3 cm x 10.6 cm x 4.0 cm (L x W x H) / 300g
