CML04

Titan CML Expander

64 Channel Expander

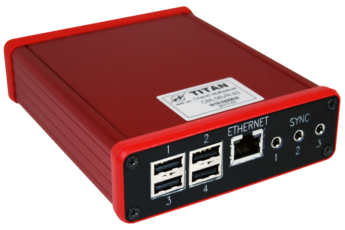

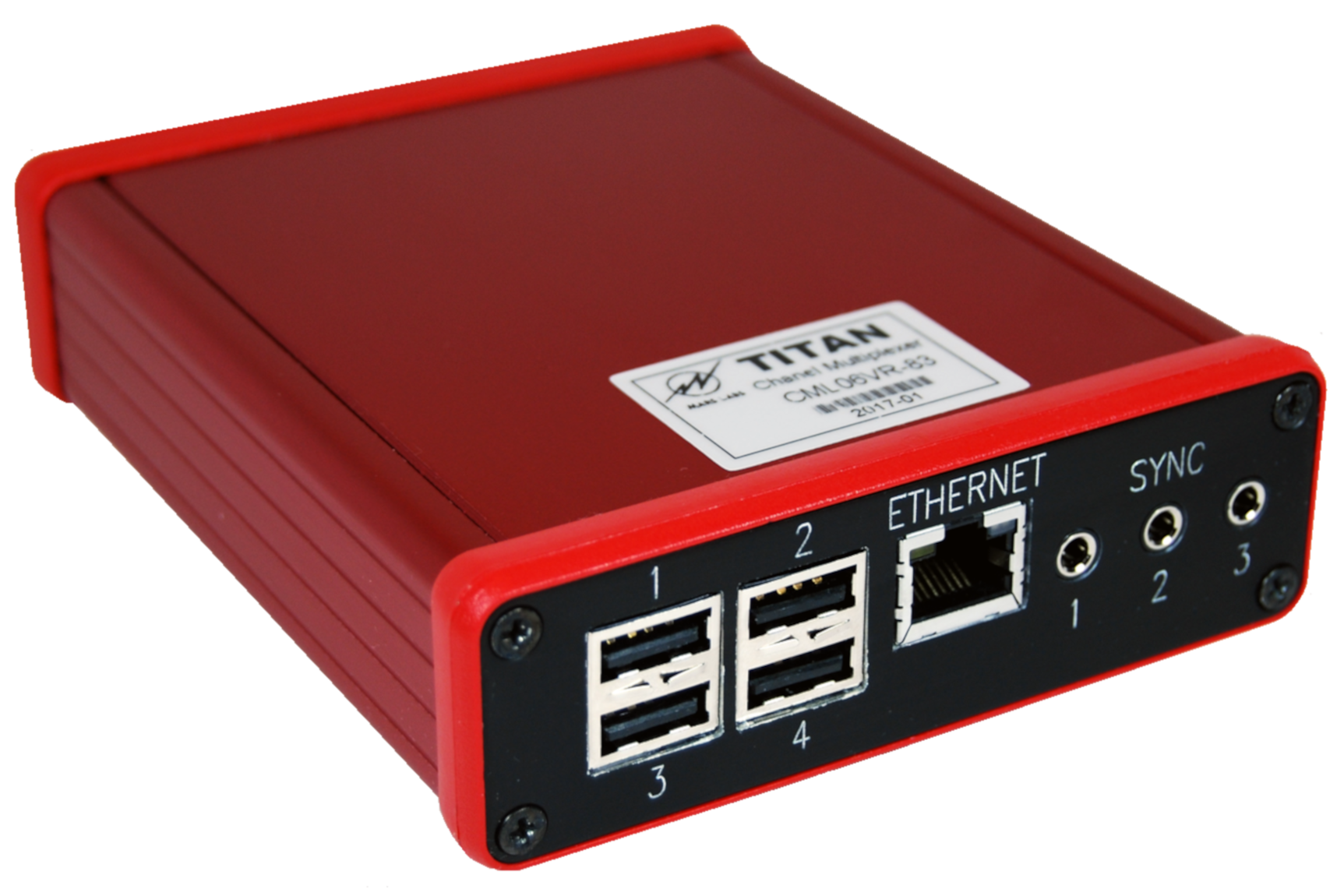

Front View

KEY FEATURES:

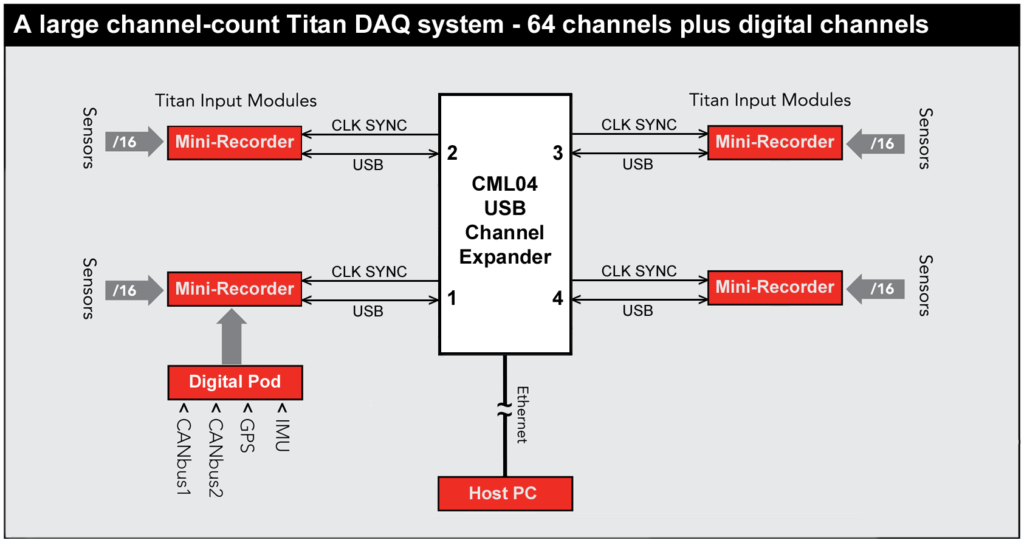

  • Supports Titan Input Modules (provides Power, COMM, & Sync) and CMX Expanders (provides COMM & Sync)
  • Isolated power supply
  • Records directly to internal memory or to a host PC
  • Network interface allows remote operation via TCP/IP
  • Auto start / Auto record
  • Cabled remote control permits remote start/stop recording
  • Compact size and low weight make the CM06 suitable for in-vehicle applications
  • Slim profile permits multiple device stacking
Specifications
USB Inputs4 USB A (for Titan modules), 2 USB A (Future use)
Clock Sync OutputFive (3.5mm sockets)
Sample Rates With Titan ‘C’ series modules: Up to 60K samples/second (64 channels max)
With Titan ‘B’ series modules: Up to 10K samples/second
Recording Media64GB, non-removable
{C OperationVia network or Ethernet crossover cable
Power Requirements 11 – 32 VDC
Dimensions 13.3 cm x 10.6 cm x 4.0 cm (L x W x H) / Weight 400g
